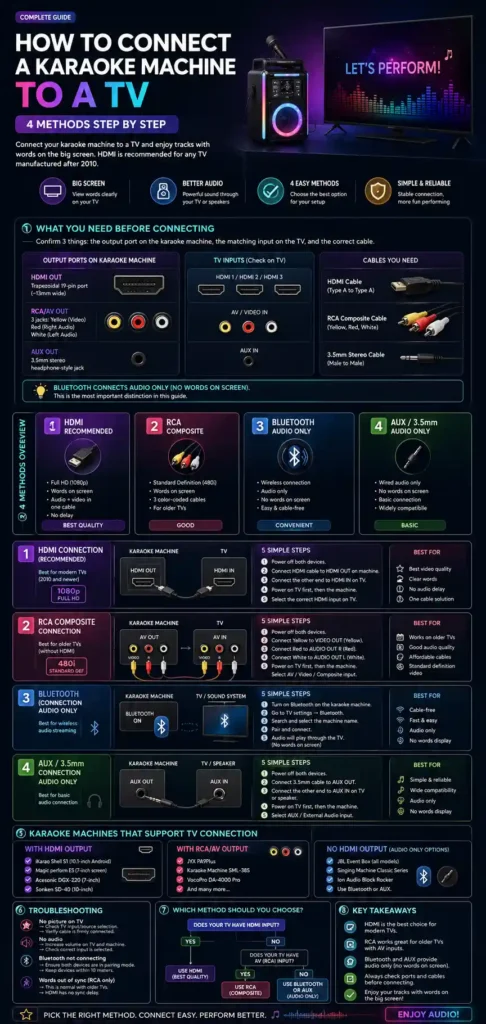

How to Connect a Karaoke Machine to a TV: 4 Methods Step by Step

Connecting a karaoke machine to a television allows you to view lyrics on a larger display and route backing track audio through your home sound system. The correct connection method depends on the ports available on both your karaoke machine and your TV. This guide provides step-by-step instructions for the four primary connection methods: HDMI, RCA, Bluetooth, and AUX, along with troubleshooting tips for audio lag and synchronization.

What You Need Before You Connect

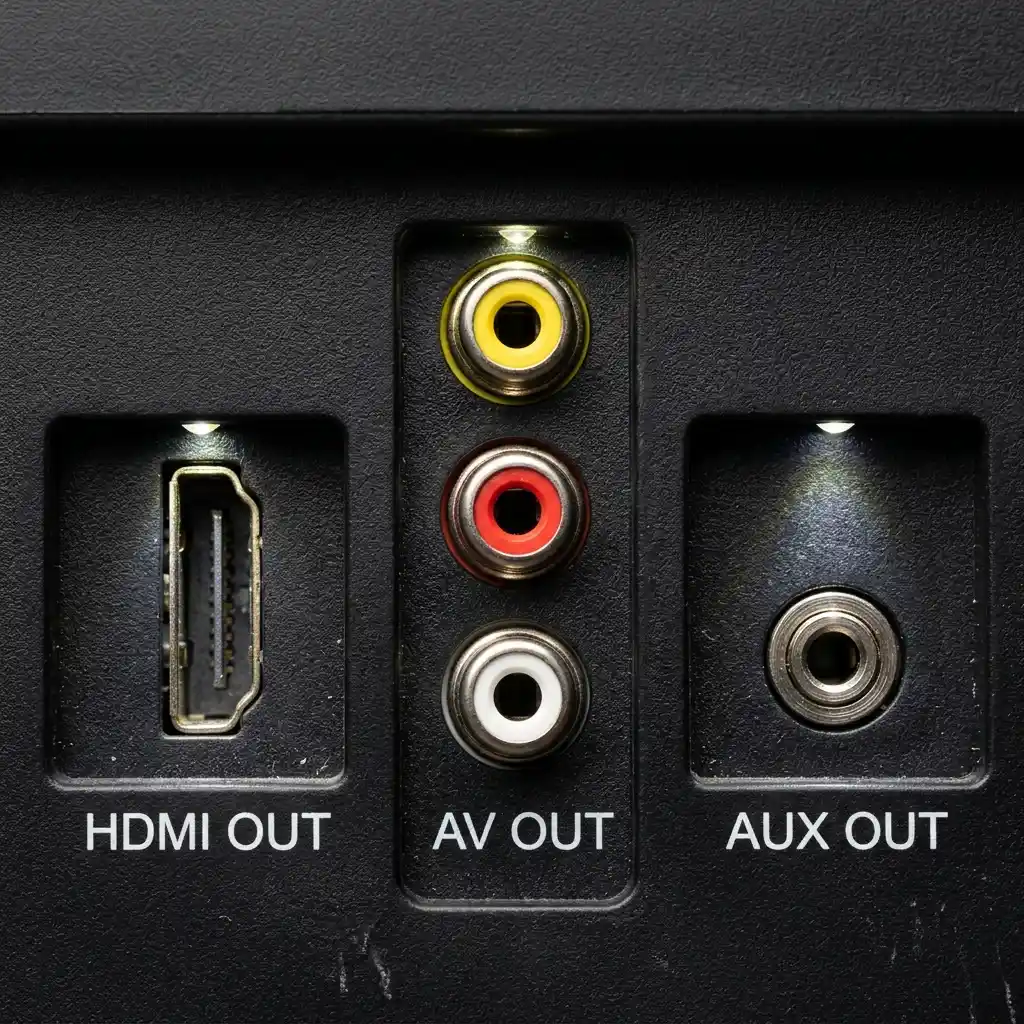

Before beginning, inspect the rear panels of both your karaoke machine and your television to identify the available ports.

• Video Outputs/Inputs: Look for HDMI ports, composite RCA ports (yellow for video), or coaxial jacks.
• Audio Outputs/Inputs: Look for red and white RCA jacks, 3.5mm AUX ports, optical digital ports, or Bluetooth compatibility.

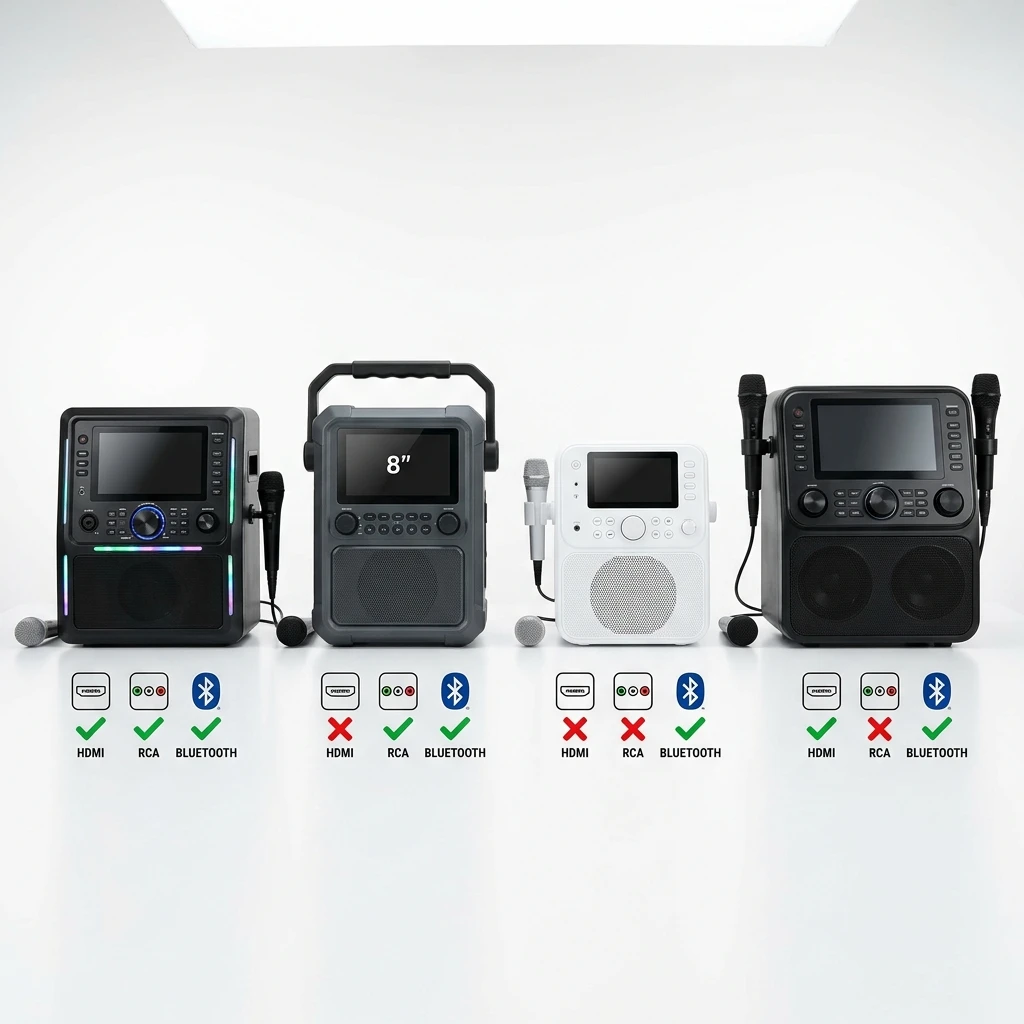

Some karaoke machines provide RCA/AV output, particularly older or legacy-oriented systems. Check the exact model’s rear-panel ports or manual before buying a cable.

Method 1: HDMI Connection (Recommended for Modern TVs)

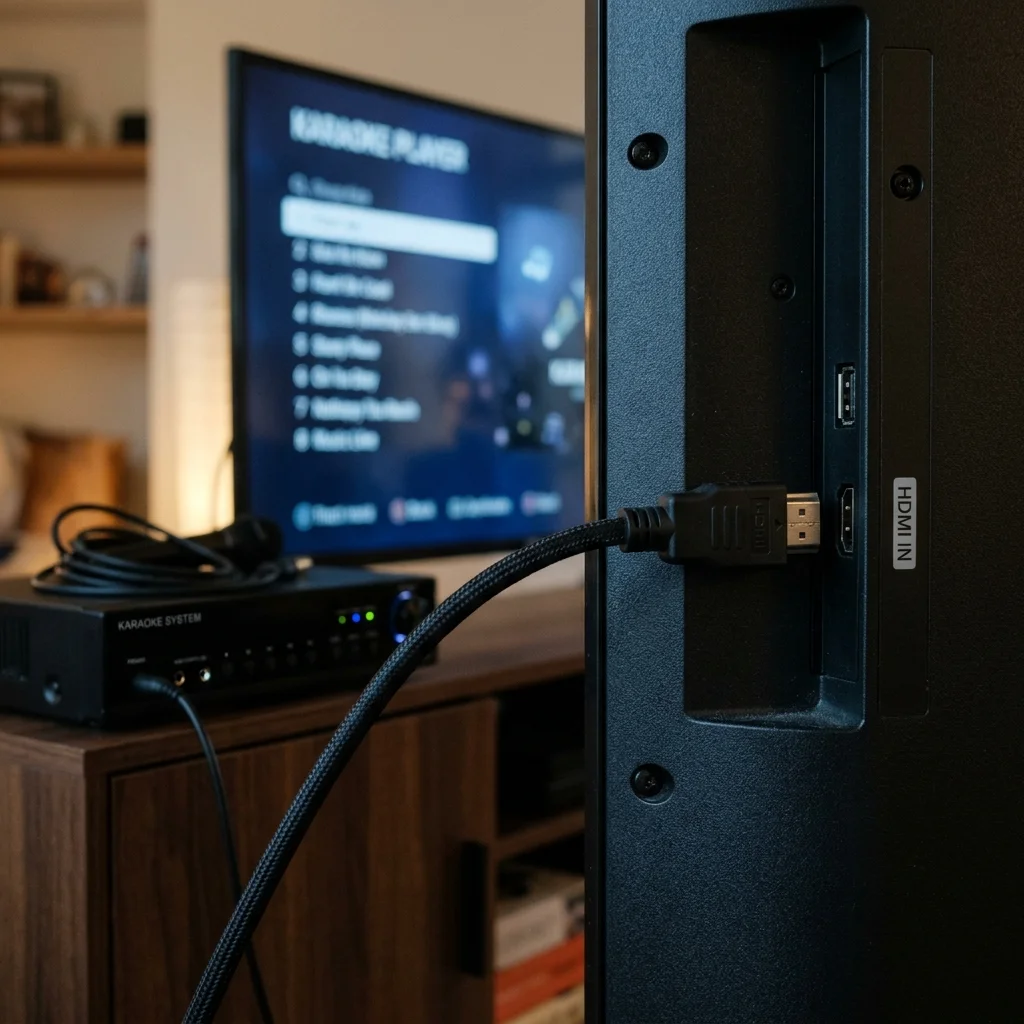

If both the karaoke machine and television support HDMI, HDMI is generally the simplest connection because it can carry digital video and audio through one cable. HDMI generally provides a lower-latency wired connection than Bluetooth, although total delay depends on the connected devices and their processing settings.

HDMI Setup Steps

1. Connect Cable: Plug one end of a standard HDMI cable into the HDMI OUT port on the karaoke machine.
2. Connect to TV: Plug the other end into an available HDMI IN port on your television. Note the label of the input port (e.g., HDMI 1, HDMI 2).
3. Power On: Power on both the karaoke machine and the TV.

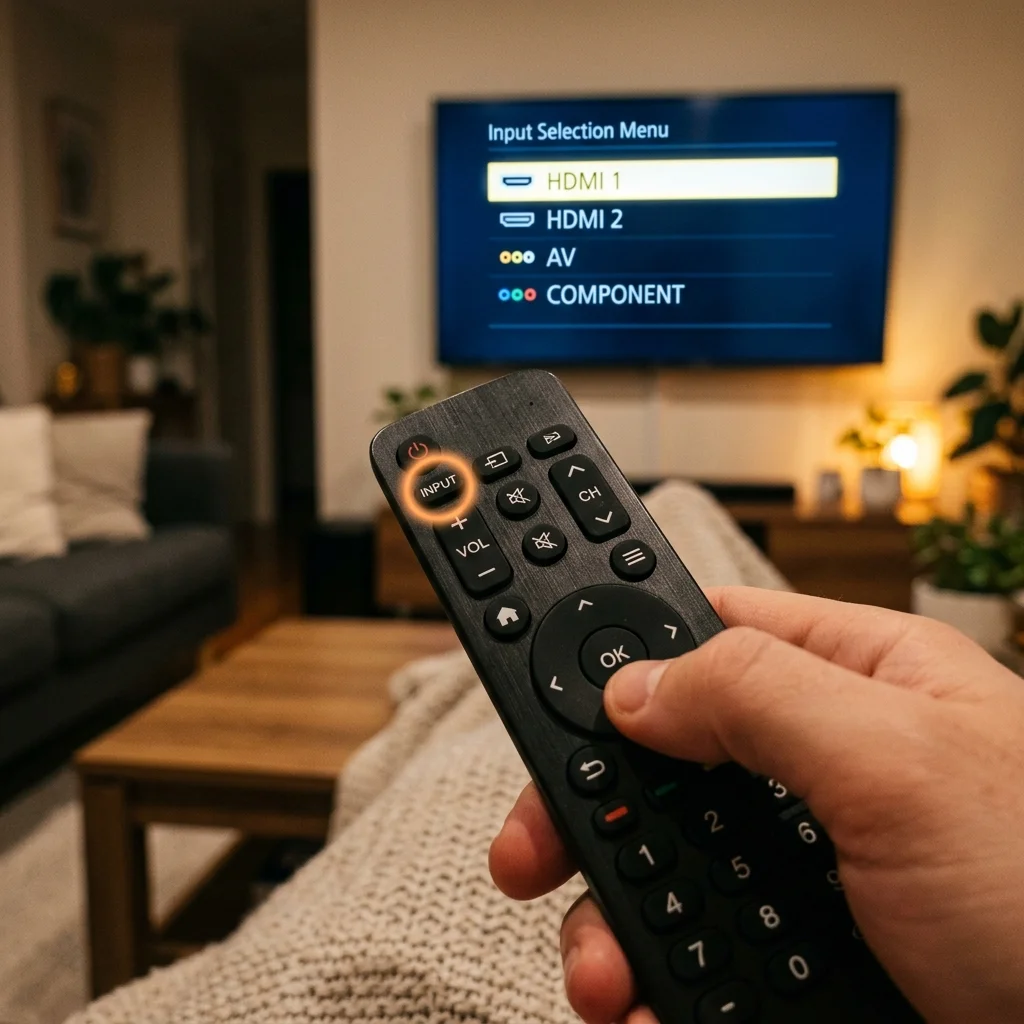

4. Select Source: Use your TV remote’s Source or Input button to select the corresponding HDMI port.
5. Configure Audio Output: If sound does not play automatically, navigate to your TV’s audio settings menu and select the television speakers or connected soundbar as the active output device.

Method 2: RCA Connection (For Legacy Systems)

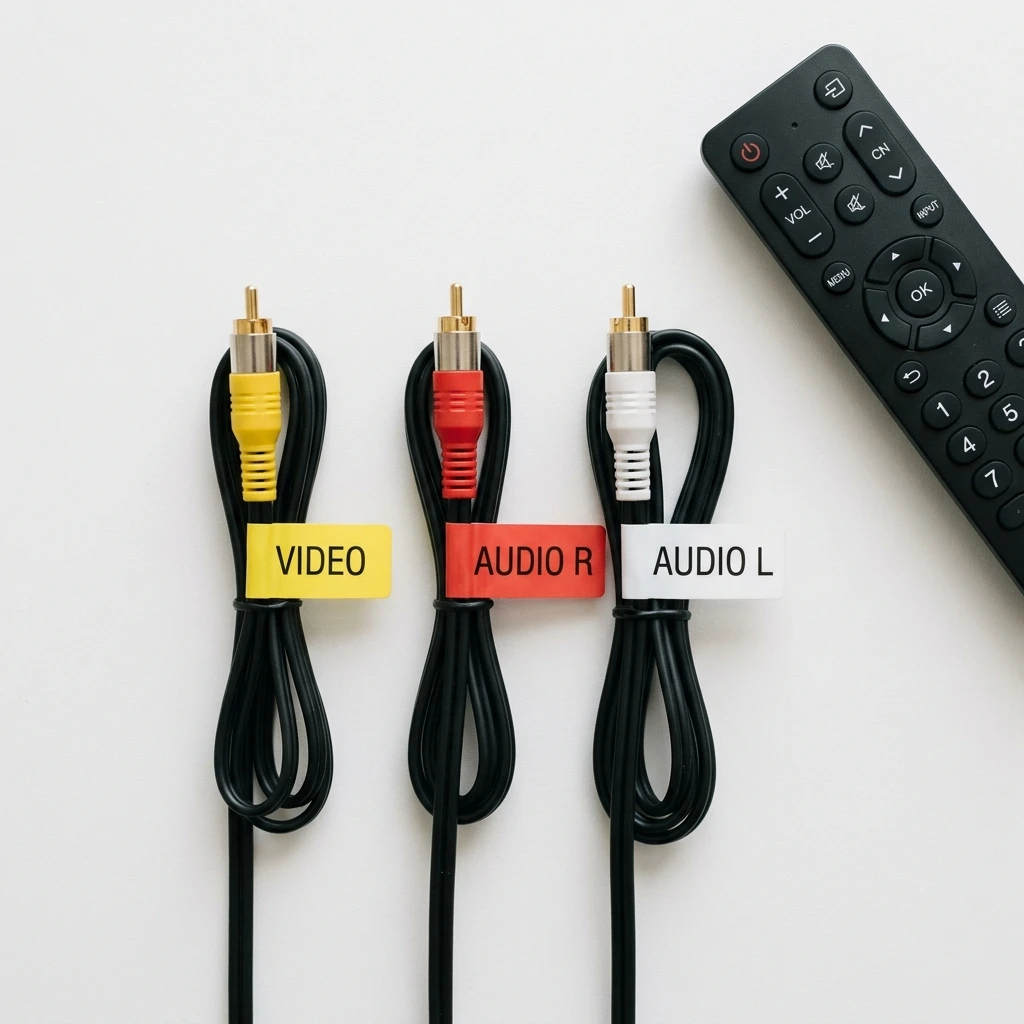

For older karaoke systems or TVs without HDMI ports, composite RCA cables are the standard connection method. RCA carries analog signals: yellow for composite video, and red and white for stereo audio. Composite RCA produces a lower-resolution image than HDMI and may appear noticeably softer on larger televisions.

RCA Setup Steps

1. Match Colors: Connect the yellow (video), red (right audio), and white (left audio) RCA plugs to the corresponding color-coded ports in the AV OUT section of your karaoke machine.
2. Connect to TV: Connect the opposite ends of the cable to the color-coded AV IN ports on the television.
3. Power On: Turn on both devices.
4. Select AV Input: Switch your television’s input source to AV or Composite using your remote.
5. Adjust Volume: Set the karaoke machine’s master volume and the TV volume to comfortable listening levels.

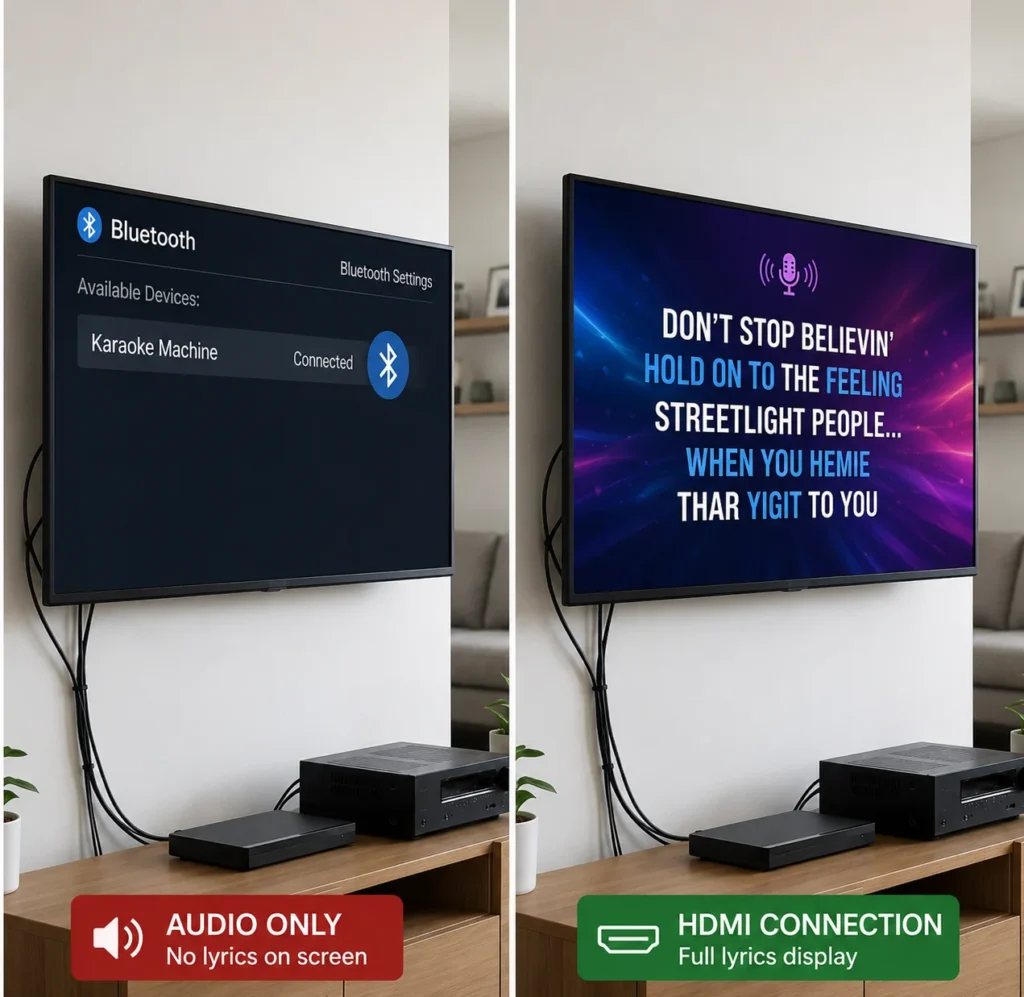

Method 3: Bluetooth Connection (Wireless Convenience)

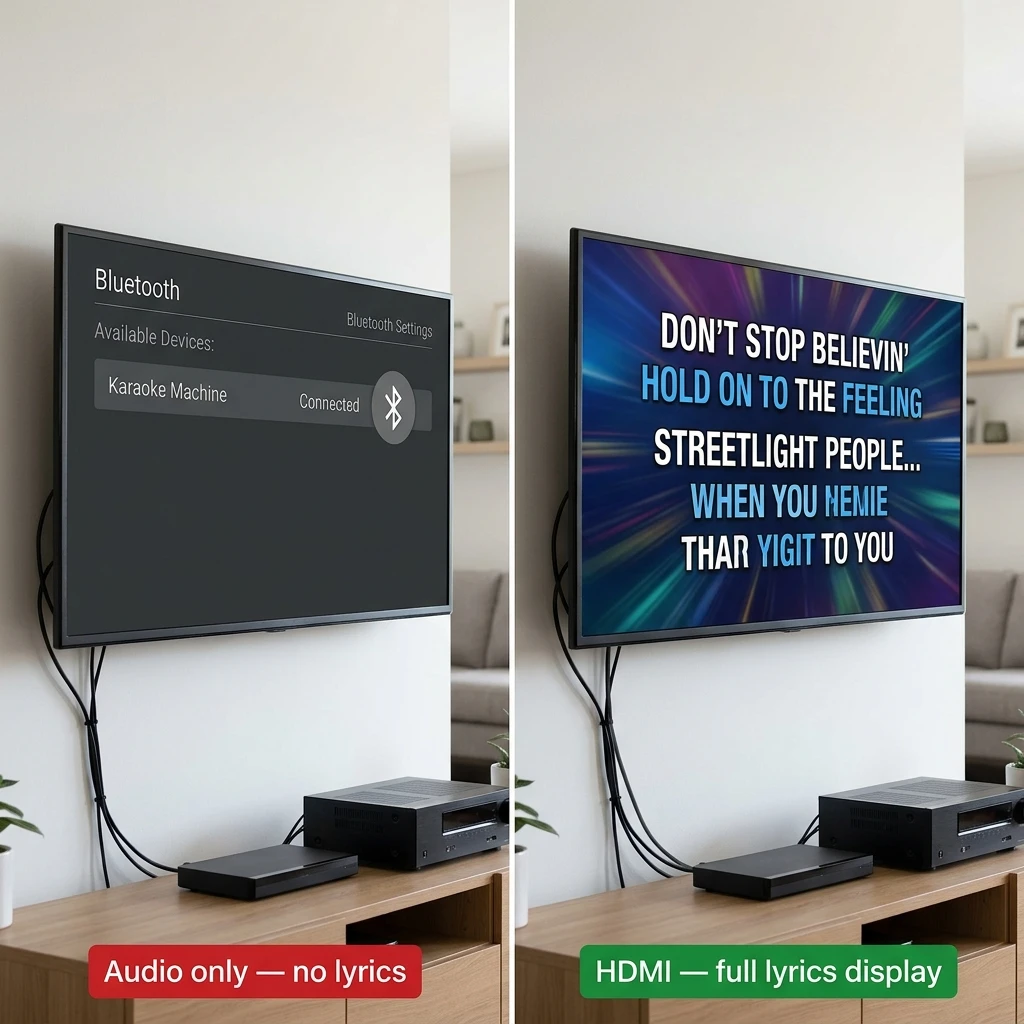

Bluetooth allows you to pair your karaoke machine with a smart TV wirelessly. Bluetooth can introduce noticeable delay because audio must be encoded, transmitted, and decoded. The amount varies by codec and device implementation, so a wired connection is usually preferable when lip-sync or vocal timing is sensitive.

Bluetooth Setup Steps

1. Enable Pairing Mode: Turn on your karaoke speaker (such as the JBL PartyBox Stage 320 or JYX PA9Plus) and press the Bluetooth button to put the device in pairing mode (indicated by a flashing LED).
2. Open TV Settings: On your Smart TV, navigate to Settings -> Sound -> Audio Output -> Bluetooth Speaker List (exact paths vary by TV manufacturer).
3. Select Karaoke Machine: Select the karaoke machine from the TV’s Bluetooth device list and wait for pairing to complete.
4. Adjust Volume: Control the playback volume using both the TV remote and the speaker’s physical controls.

Method 4: AUX Connection (Analog Audio Only)

For portable speakers that lack digital video capabilities but have an analog input, you can connect them to the TV using a 3.5mm AUX cable. This method only routes audio; lyrics must still be viewed on a separate device. A direct wired AUX connection avoids Bluetooth transmission delay, although overall audio timing still depends on the connected devices. Some televisions provide a 3.5mm analog audio input; check the TV’s port labels or manual before relying on AUX.

AUX Setup Steps

1. Plug into TV: Connect one end of a 3.5mm audio cable to the Audio Out or Headphone port on your television.
2. Plug into Speaker: Plug the other end into the AUX IN port on the karaoke speaker.
3. Set Source: Set your speaker’s input source to AUX mode.
4. Set TV Output: In the TV audio settings menu, configure the audio output to external speakers or headphones.

Troubleshooting Audio Lag and Video Issues

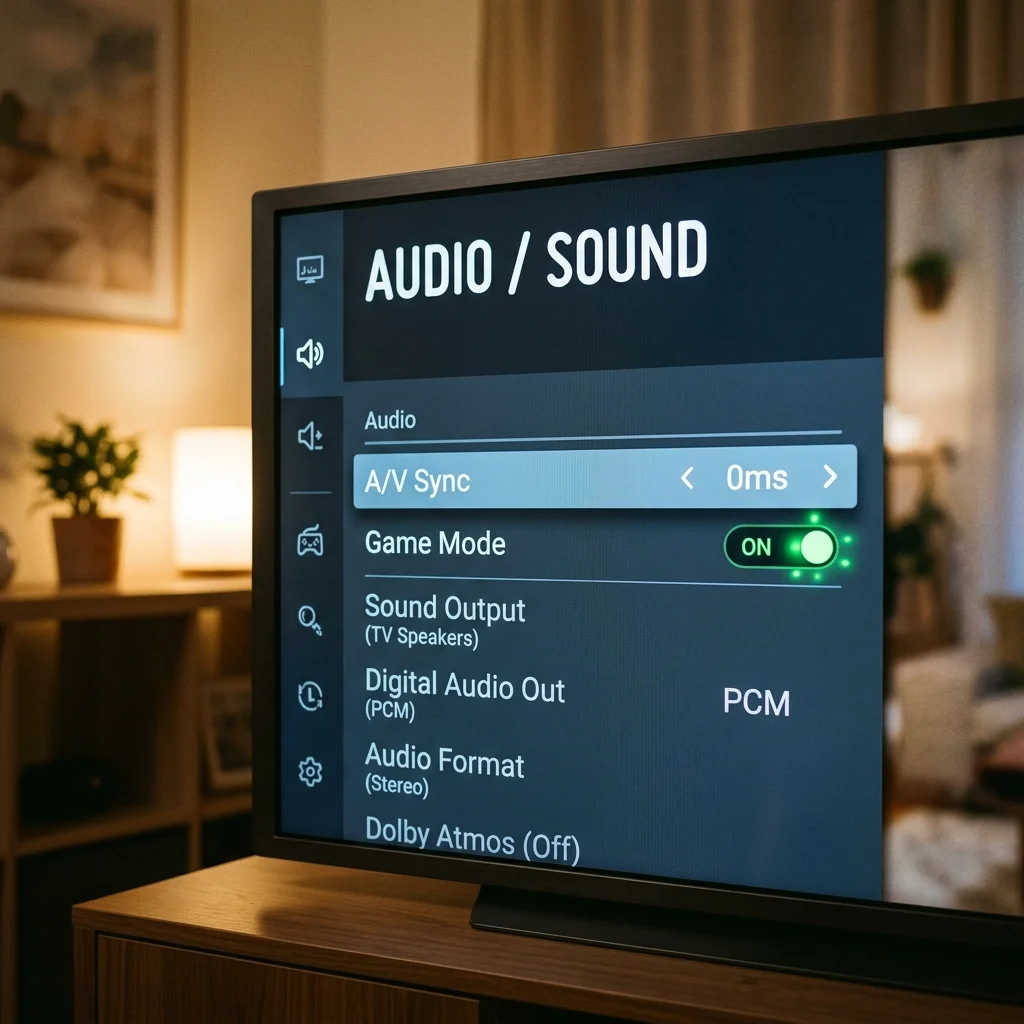

• Noticeable Audio Delay: If you experience audio lag when singing, check if your television supports a “Game Mode” or “PC Mode.” Switching to these modes reduces display and processing latency on many televisions. If Bluetooth causes noticeable delay, switching to a wired HDMI, RCA, or AUX connection may improve synchronization.
• No Image on Screen: Make sure both ends of the HDMI or RCA cable are fully seated. Disconnect and reconnect the cable firmly if necessary. If using HDMI, double-check that the TV input source matches the specific port number where the cable is connected.
• Distorted or Fuzzy Image: If using RCA, ensure you haven’t mixed up the color-coded plugs (yellow must be video). Try a known-working composite or HDMI cable to rule out cable failure.
• Vocal-to-Music Balance: Adjust the microphone volume controls directly on the karaoke machine rather than using the TV remote. The TV remote controls the master backing track volume, while the microphone inputs have independent gain controls.

Frequently Asked Questions

Sources and Editorial Methodology

Setup guidelines, signal paths, and troubleshooting procedures have been verified against official user manuals and connectivity guides from television manufacturers and audio brands. Specifications were reviewed in August 2026. For detailed hardware requirements and advanced settings, consult the HDMI Licensing Administrator Specifications and official TV user manuals.
