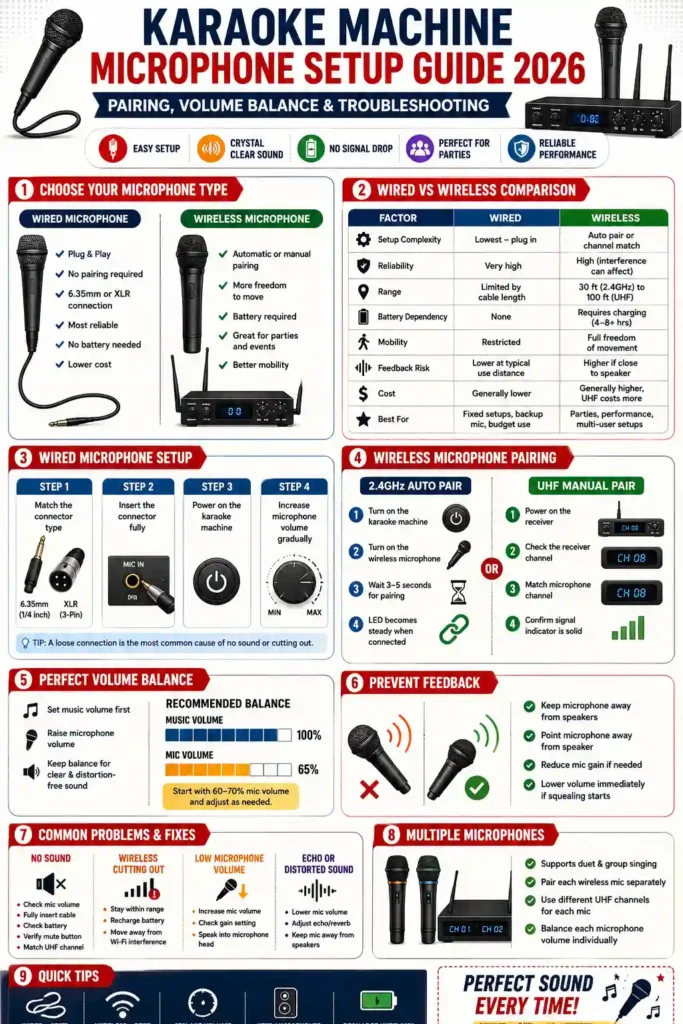

Karaoke Machine Microphone Setup: Pairing, Volume Balance and Troubleshooting

Karaoke machine microphone setup differs by connection type. Wired microphones connect via a 6.35mm or XLR jack with no pairing required. A karaoke machine with wireless microphones transmits audio over a radio frequency band (such as 2.4 GHz, UHF, or VHF) and uses a pairing or tuning design to connect the transmitter to the receiver. Proper configuration ensures clean vocal transmission and avoids interference from other wireless devices.

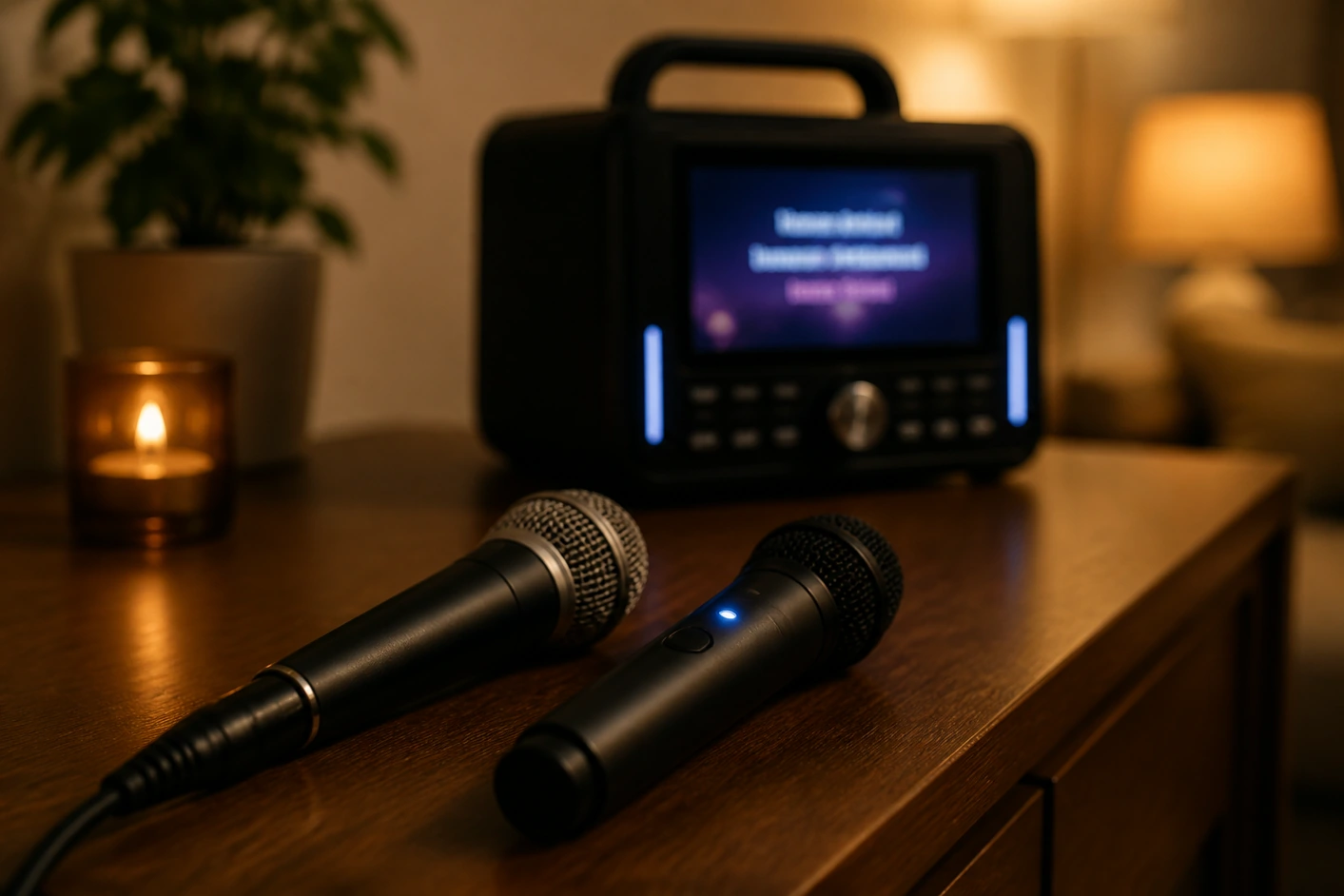

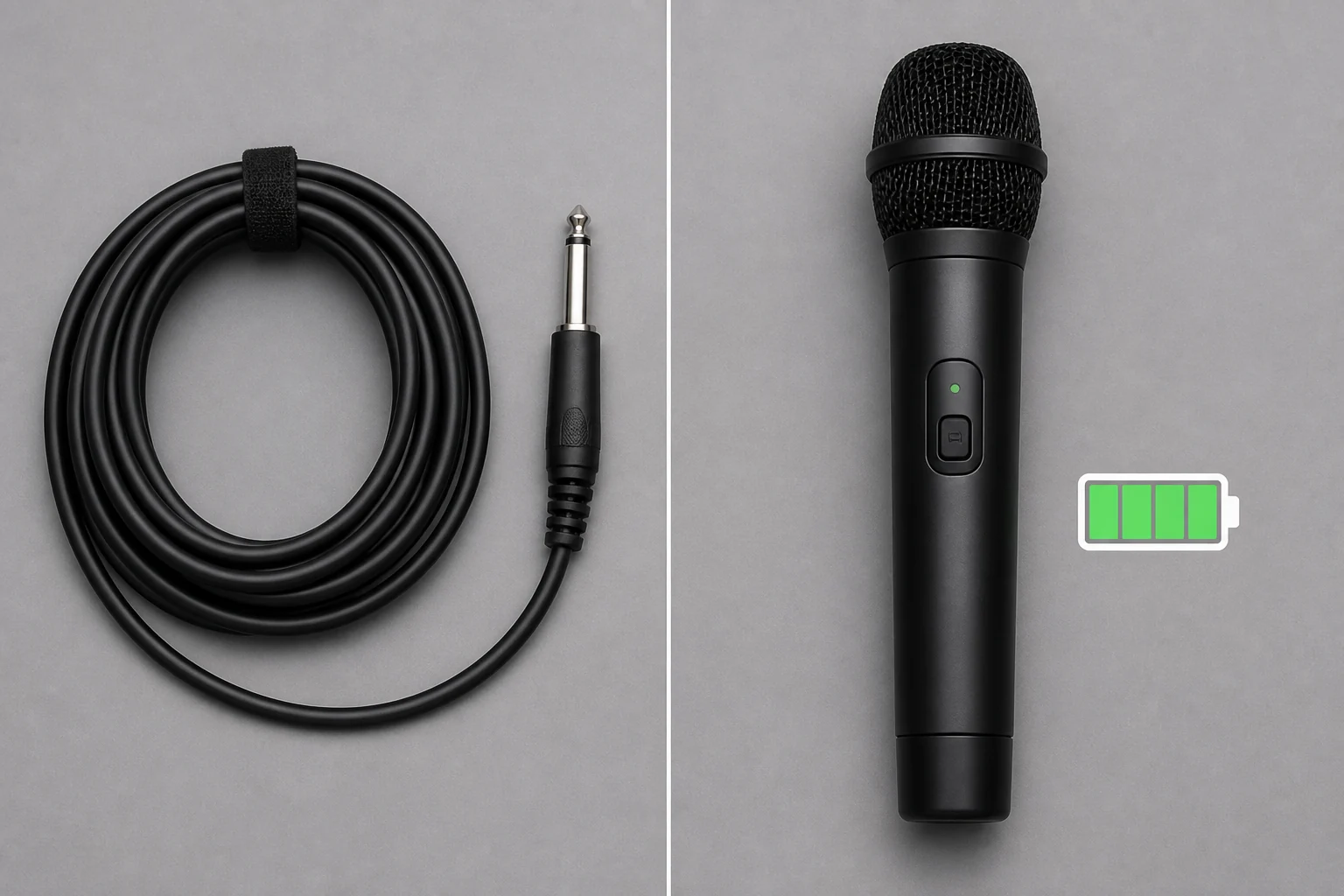

Wired vs Wireless: Pros and Cons

Before setup, it helps to know what each connection type trades off. The table below compares wired and wireless microphones across the factors that matter most for karaoke use.

Neither type is universally better—the right choice depends on the setup. A fixed home setup with one main singer favors a wired microphone for its reliability and lower cost. A party setup with multiple rotating singers favors wireless for its freedom of movement.

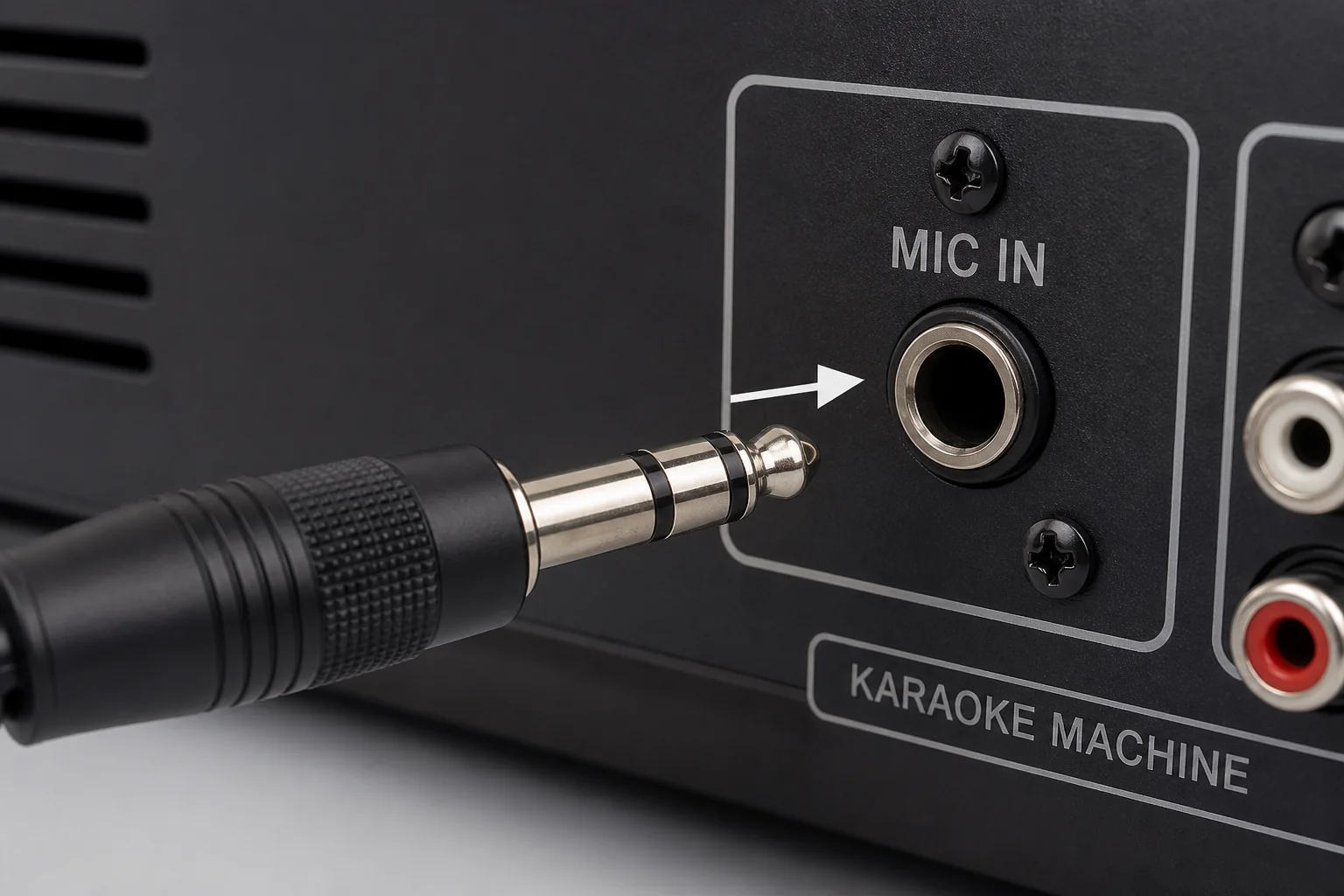

Wired Microphone Setup

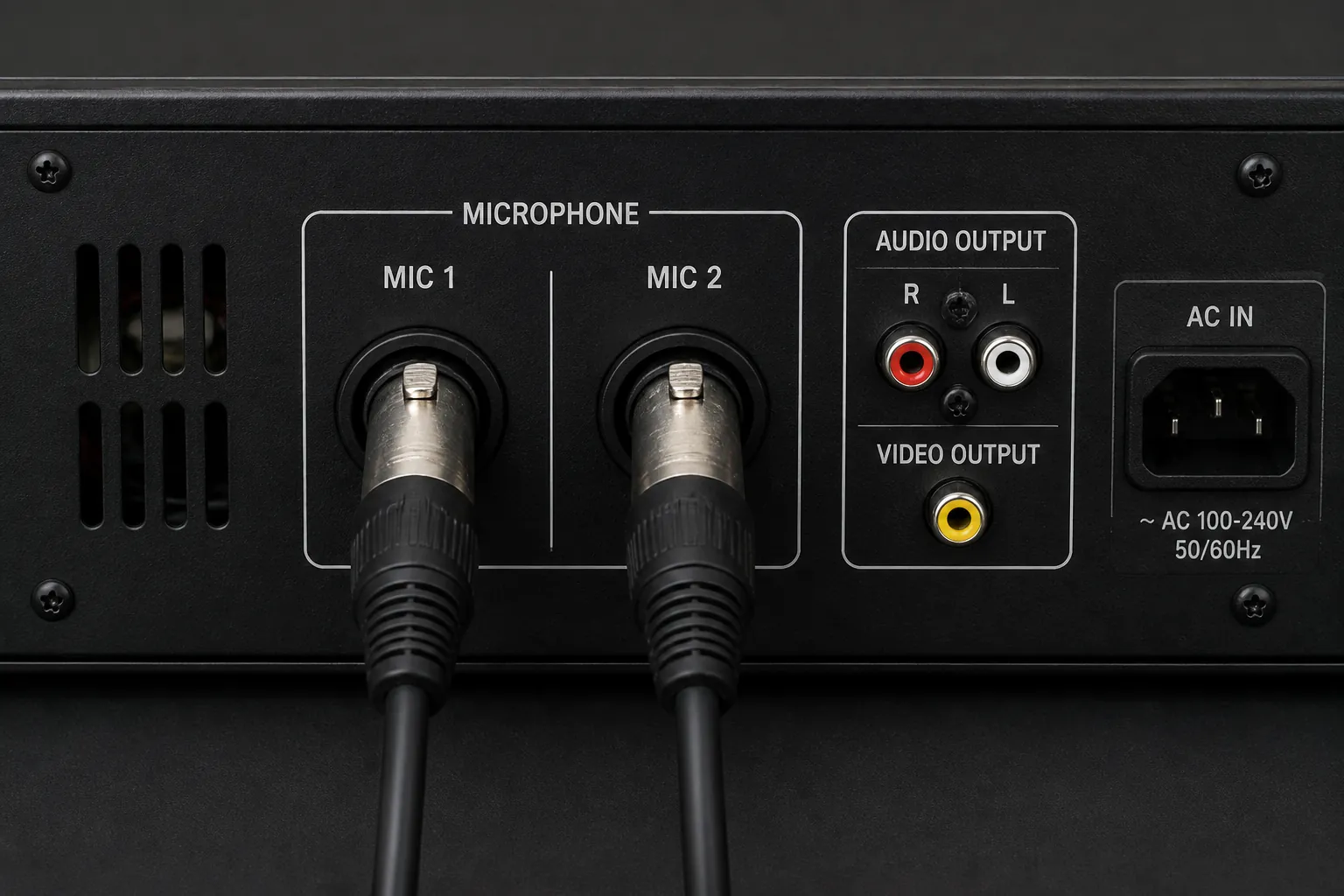

1. Match the connector type: Consumer machines standardize on a 6.35mm TRS (quarter-inch) jack. Professional amplifiers typically use a 3-pin XLR connector instead, which locks in with a small clip.
2. Insert the connector fully: Push the plug in until it seats with a slight click or firm resistance. A connector that is only partially inserted is the most common cause of intermittent or absent sound.
3. Power on before adjusting volume: Turn on the karaoke machine first, then bring microphone volume up from zero. This order avoids a loud pop or burst of feedback that can occur when a connection is made while the input is already live.

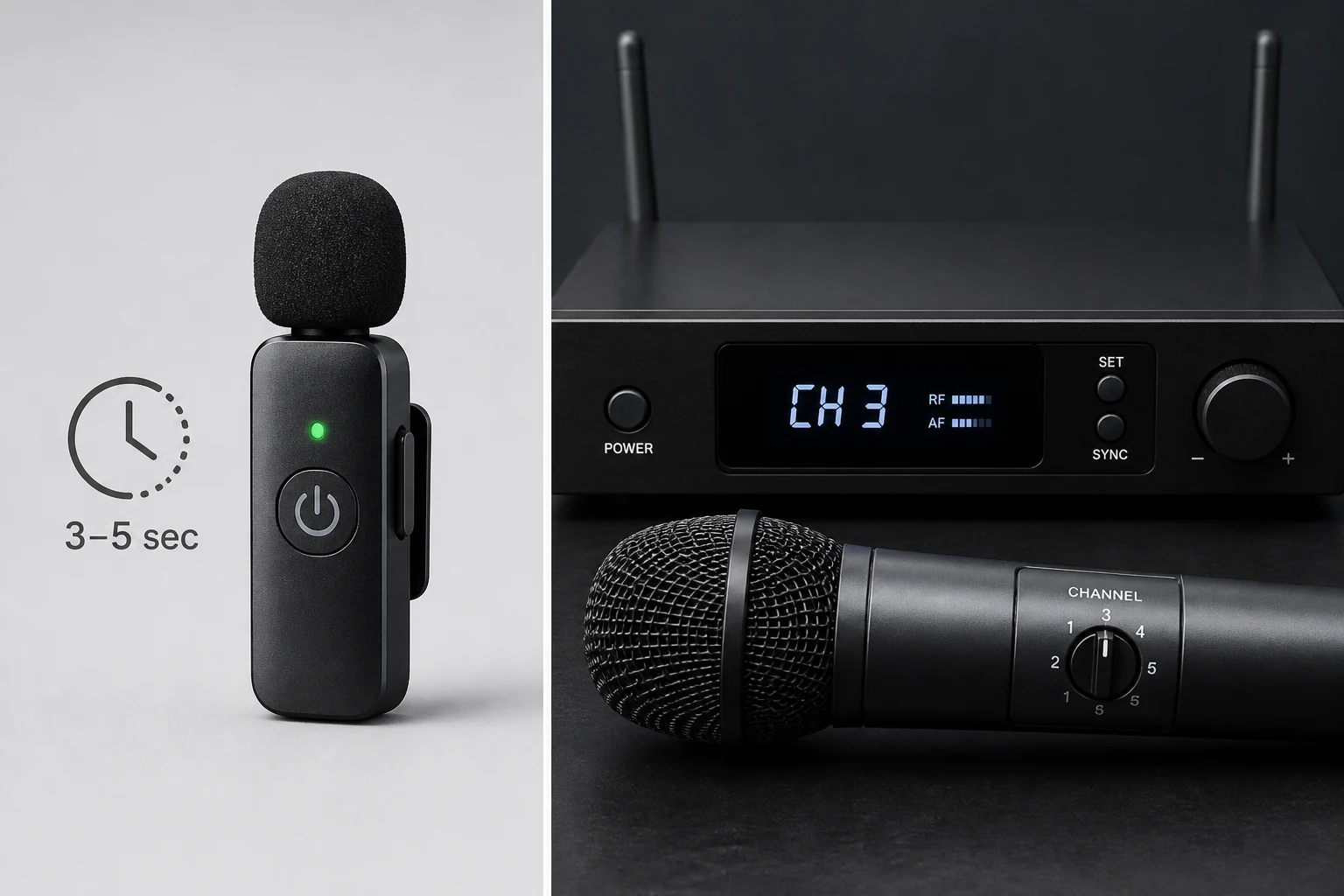

Wireless Microphone Pairing: Automatic vs Manual Setup

Wireless microphone systems require pairing the handheld transmitter to the system’s receiver. The pairing method is determined by the hardware’s system design rather than just the frequency band:

Automatic Pairing

Many consumer wireless systems use automatic pairing.

1. Power on the receiver: (or turn on the karaoke machine if the receiver is built-in).
2. Power on the wireless microphone: The transmitter and receiver automatically negotiate a connection—typically within a few seconds—indicated by a steady status LED on the microphone or receiver.

Examples: This is the standard pairing design on the iKarao Shell S1 (which features self-charging mics), JYX PA9Plus, and JYX PA18Plus.

Manual Frequency Setup

Professional-grade or multi-microphone setups often feature manual frequency matching. This design allows users to manually coordinate frequencies to avoid local interference or run multiple microphones simultaneously.

1. Power on the receiver unit.
2. Scan for a clean channel: On professional systems (such as the Shure QLX-D or Sennheiser EW series), run an automatic channel scan to find an open frequency that is free of local RF interference.
3. Synchronize Transmitter: Turn on the microphone and align its infrared (IR) window with the receiver’s IR window, pressing the Sync button to match the microphone to the selected frequency. On simpler manual UHF systems, press the channel button on the microphone until its screen matches the frequency shown on the receiver.
4. Confirm signal: Verify that the RF signal strength indicator on the receiver lights up.

Frequency Bands & Interference

• 2.4 GHz vs. UHF: Wireless microphones operate on various bands. The 2.4 GHz band is shared with home Wi-Fi networks, Bluetooth devices, and microwave ovens, which can lead to local congestion in busy areas. The UHF band (typically 470–608 MHz in the US) operates outside this range but still requires coordination to avoid interference from television broadcasts or other wireless equipment.
• Operating Range: The distance a wireless microphone can transmit reliably depends on the frequency band, antenna design, obstacles (like walls or human bodies), and local RF congestion. Always refer to the manufacturer specifications for your exact model’s expected range in standard environments.

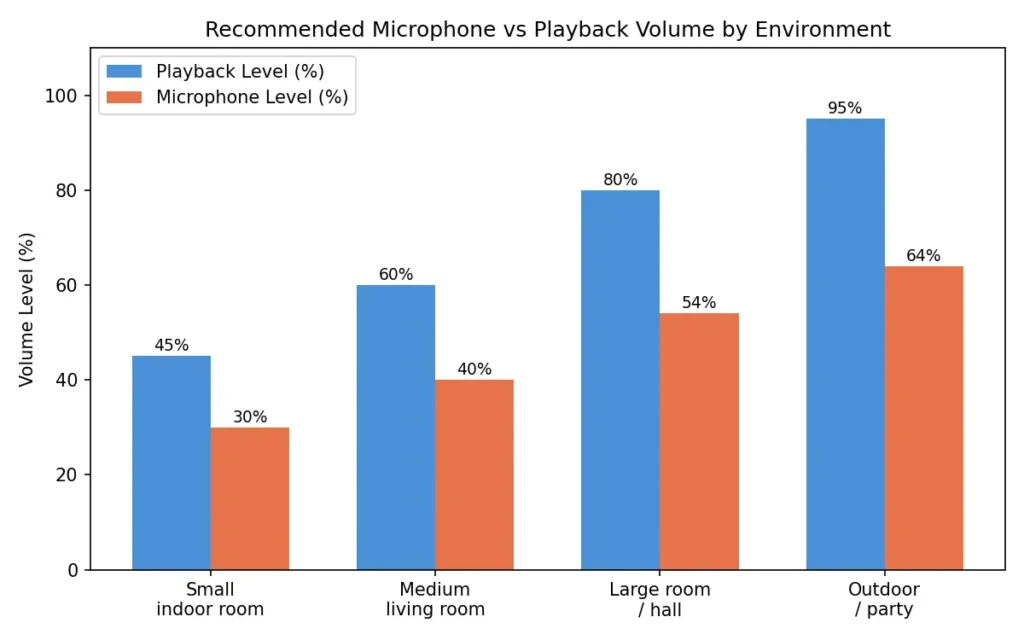

Balancing Microphone and Playback Volume

Microphone volume and playback volume are separate controls on virtually all karaoke machines. Set playback volume to a comfortable listening level first. Then raise microphone volume until the vocal sits clearly above the playback without overpowering it. If your machine includes vocal effects, see our detailed guide on how a karaoke machine with echo works. This ratio remains consistent regardless of absolute room volume.

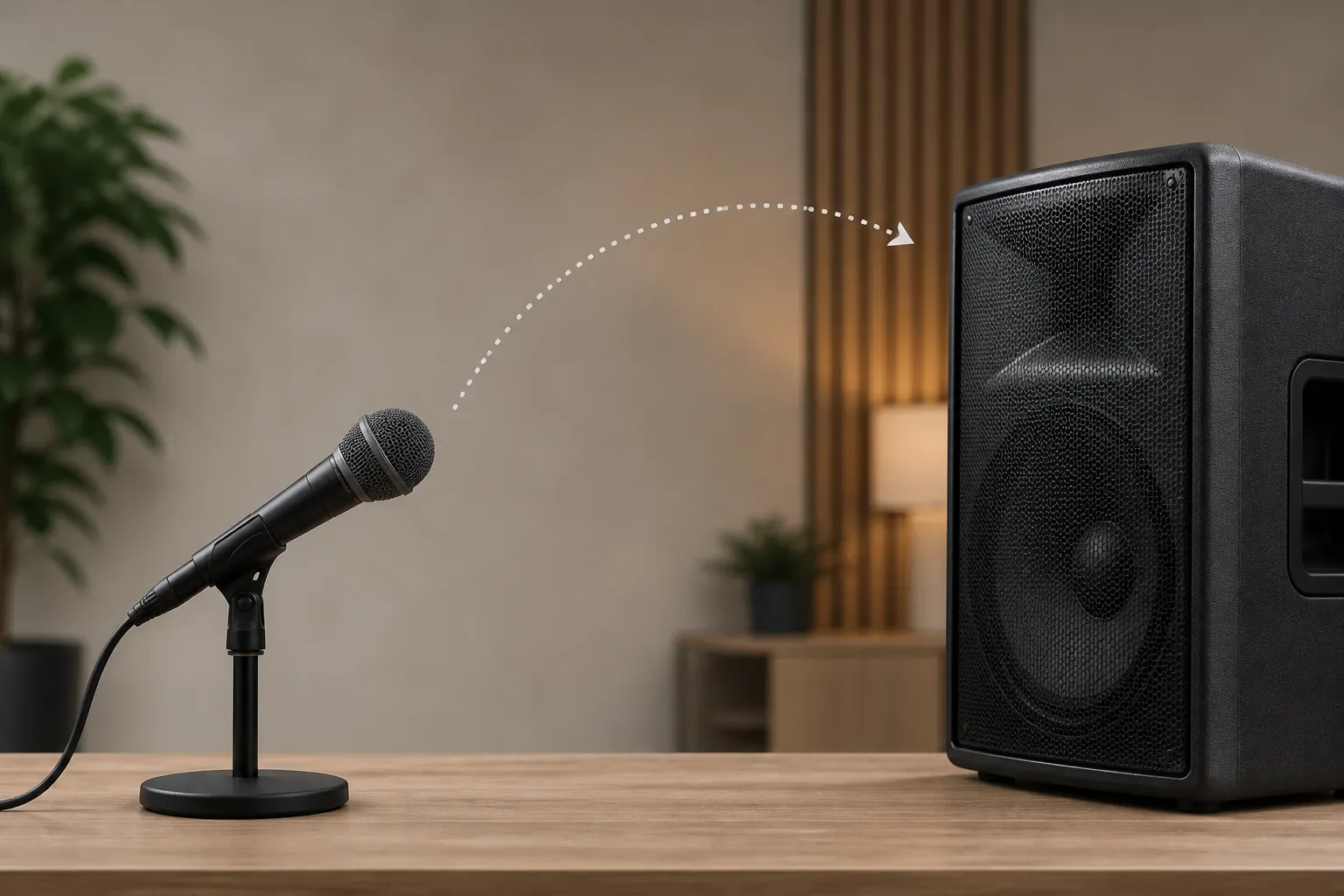

Preventing Microphone Feedback

Feedback is the loud squealing sound that happens when a microphone picks up its own amplified output and re-amplifies it in a loop. Prevent it with 3 adjustments:

• Distance: Increase the gap between the microphone and the speaker. Sound pressure drops sharply with distance, which breaks the loop.
• Angle: Point the microphone away from the speaker. Most karaoke microphones use a cardioid pattern, picking up sound from the front and rejecting it from the rear.
• Gain: Reduce microphone gain or volume if feedback persists. If feedback occurs suddenly, lower the volume immediately rather than moving the mic.

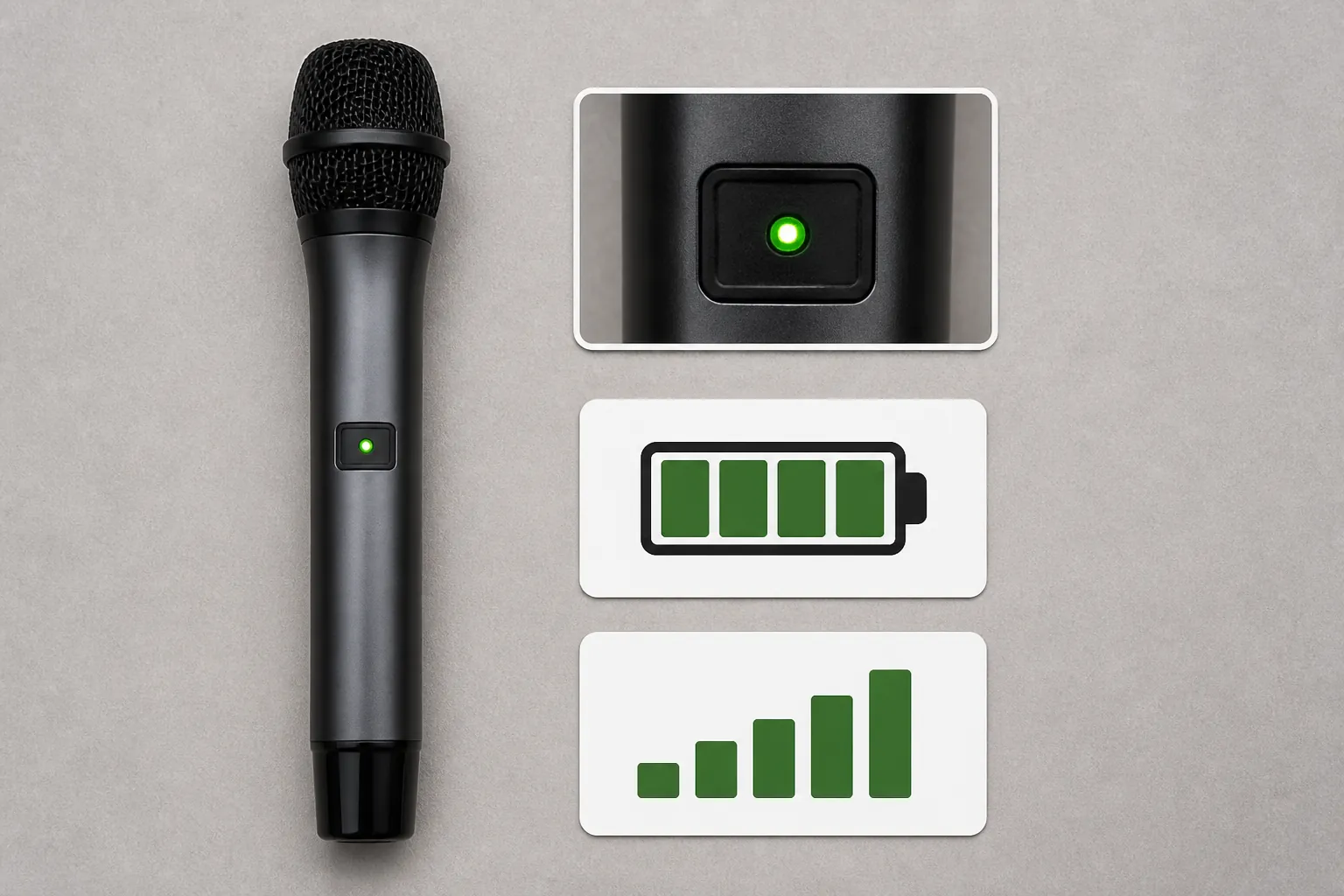

Troubleshooting: No Sound, Cutting Out, and Low Volume

No Sound from Microphone

1. Verify that the dedicated microphone volume control is not set to zero (this is separate from the master music volume).
2. For wired microphones, ensure the cable is fully seated in the MIC IN jack.
3. For wireless microphones, verify that the batteries are charged.
4. For manual systems, confirm the transmitter and receiver channels are matched.

Wireless Microphone Cutting Out

1. Reduce Obstacles: Maintain a clear line of sight between the microphone and the receiver.
2. Check Batteries: Low battery levels will cause signal dropouts before complete power failure.
3. Avoid RF Interference: If using 2.4 GHz systems, move away from active Wi-Fi routers. If using UHF systems, scan for a different clean frequency.

Microphone Volume Too Low

1. Speak directly into the top capsule of the microphone, not the side.
2. Check for a separate “Gain” or “Sensitivity” control on the back of the speaker or inside the menu settings.
